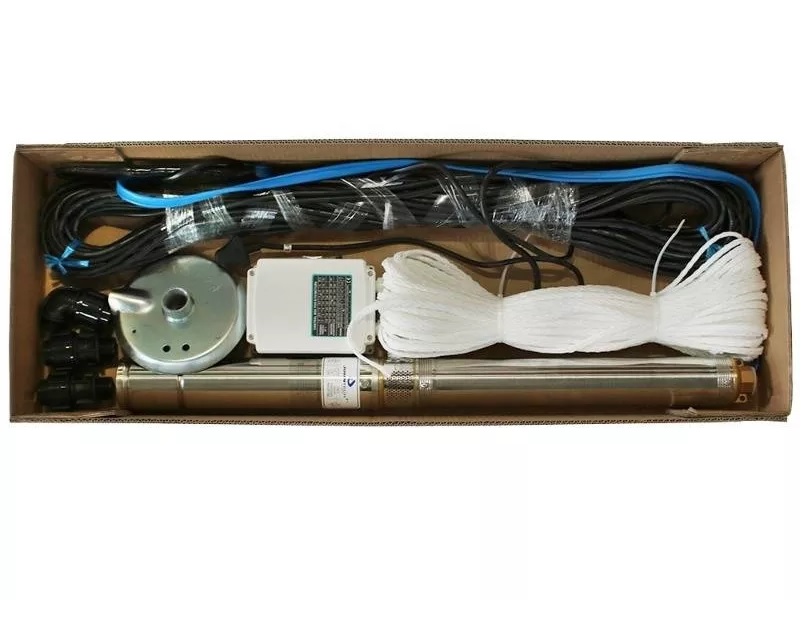

Johntech 3″ 0.55kw Water Pack 3

Description

Application
– Pumping Clean water with sand content
less than 150g/m³.
– For well pumping, river pumping, farm irrigation,
water supply.
Operating Conditions
– Submersible Depth: 100m
– Liquid temperature up to + 40 Degree
– Ambiet temperature up to + 40 Degree
– Minimum well diameter: 3.5”
Motor and Pump
– 2 pole induction motor
– Single-phase: 220V 50Hz
– Submersible motor in oil bath.
– Insulation: Class B.
– Protection: IP X8
– Outlet diameter: 1”
Material
– Pump Body: Stainless steel
– Motor Bracket: Stainless Steel
– Pump Shaft & motor shaft: Stainless steel.
– Mechanical Seal: Graphite-Silicon carbide.
– Impeller: POM
– Coupling and outlet: Brass
